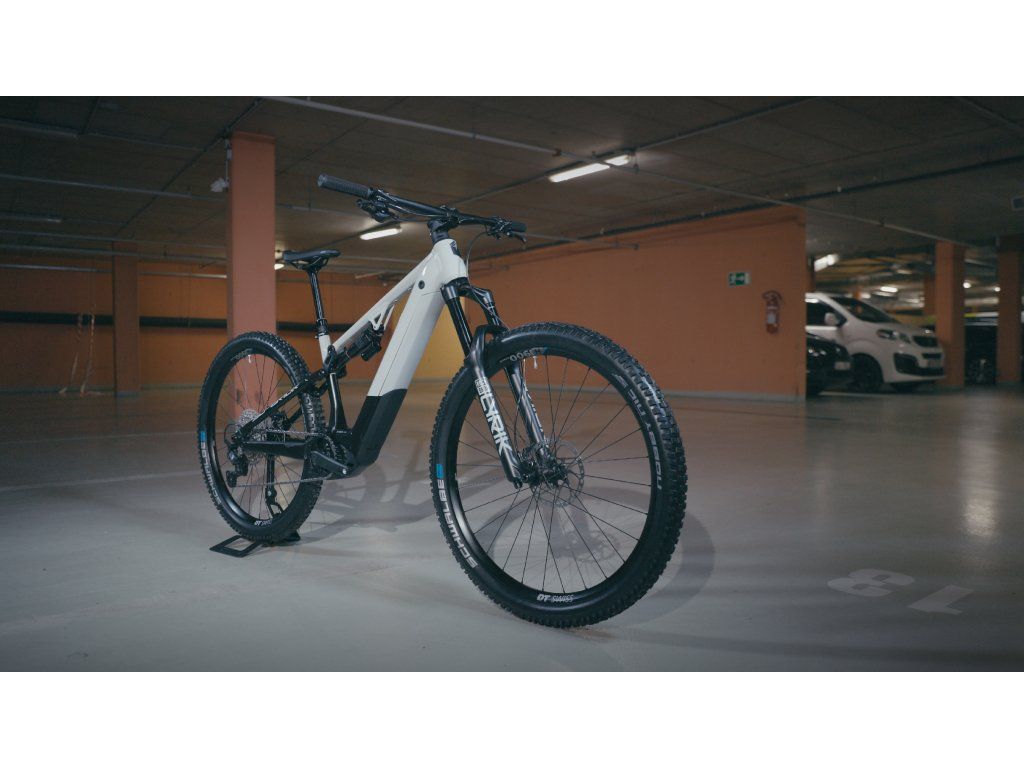

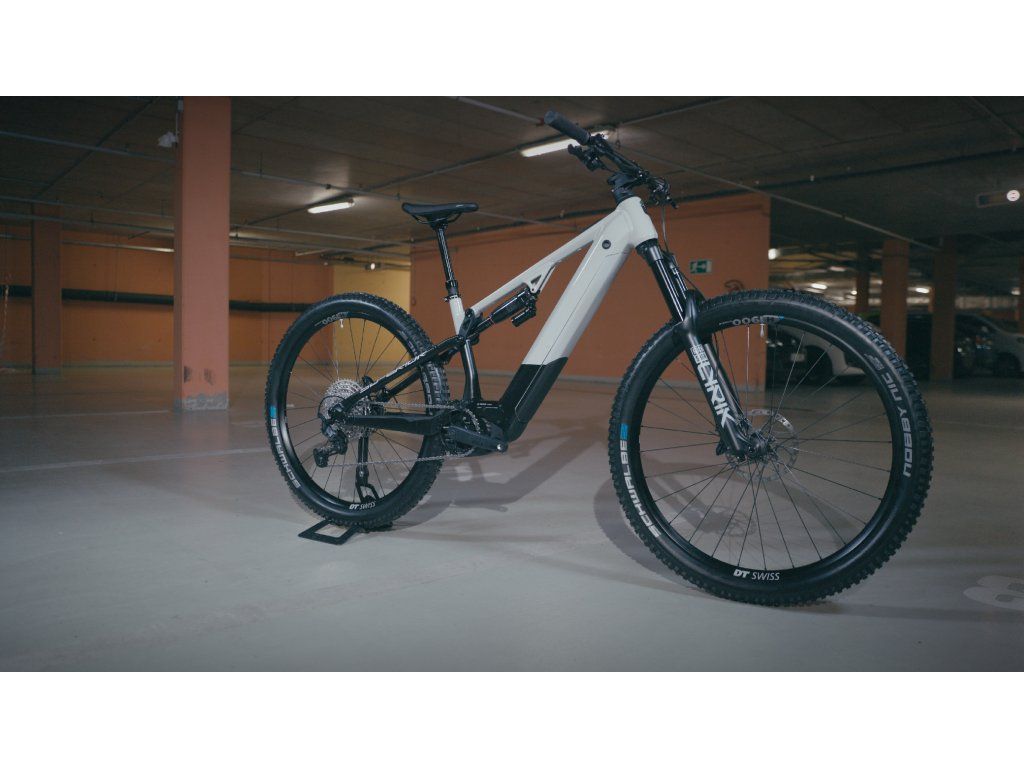

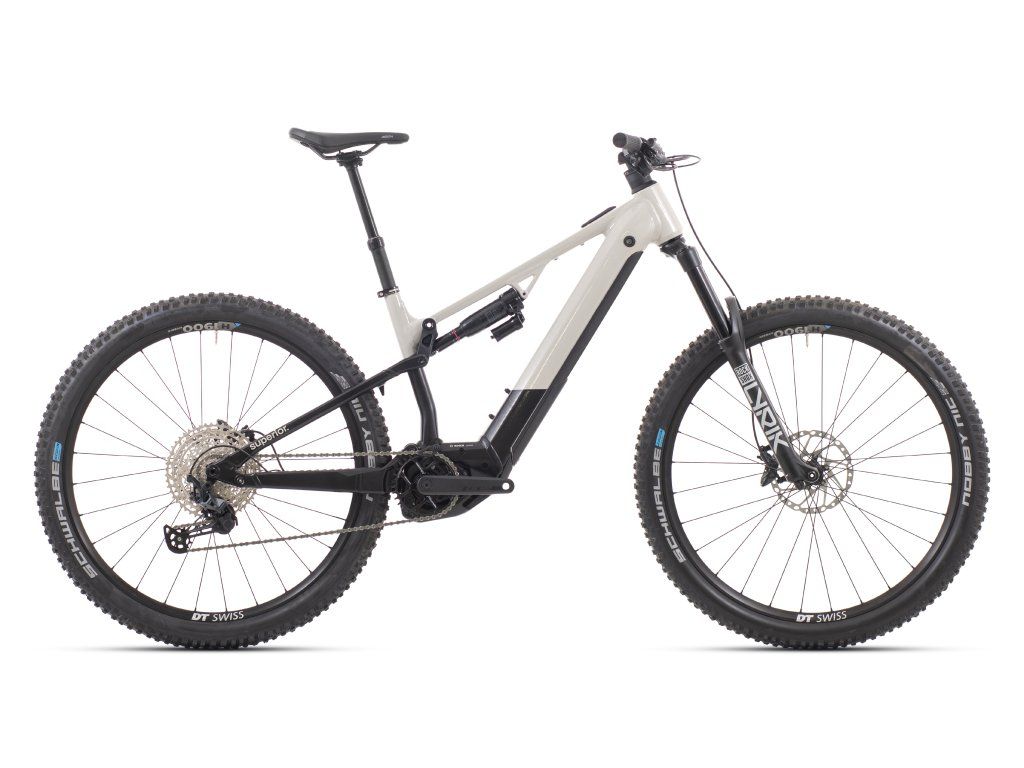

eXF 9039 B - Gloss Chrome / Black

Detailní popis produktu

Brand new e-bike frame with perfect integration of battery, drive unit and internal cabling, which at first glance differs minimally from a classic bike. The most power drive unit by Bosch CX Performance stands out for its extraordinary power, quiet operation and low weight. In combination with the 750 Wh battery, you get up to 150 km range from the bike in one charge. Shimano SLX/Deore ensures trouble-free shifting. With the bike, you can ride even harder terrain thanks to RockShox suspension or high-quality Schwalbe tires. You will also appreciate the Acros BlockLock headset or the possibility of mounting two bottle cages.

Velikost: L
Barva: Gloss Chrome / BlackE-SYSTEM: BASE INFO: BOSCH CX Performance, Battery PowerTube 750Wh, Smart System
DISTANCE: BASE INFO: 200km
MAX. TORQUE: BASE INFO: 85Nm / 400%
SUPPORT UP TO SPEED: BASE INFO: 25km/h
WEIGHT: BASE INFO: 25.85 kg
ISO norm: ISO and EN norm: EN 15194 Standard for ‘Electronically Power Assisted Cycles’ (EPAC)
EN norm: ISO and EN norm: EN17406 Condition 4 For rough Off-Road riding and jumpes less than 120cm
LOAD CAPACITY: ISO and EN norm: 150 Kg

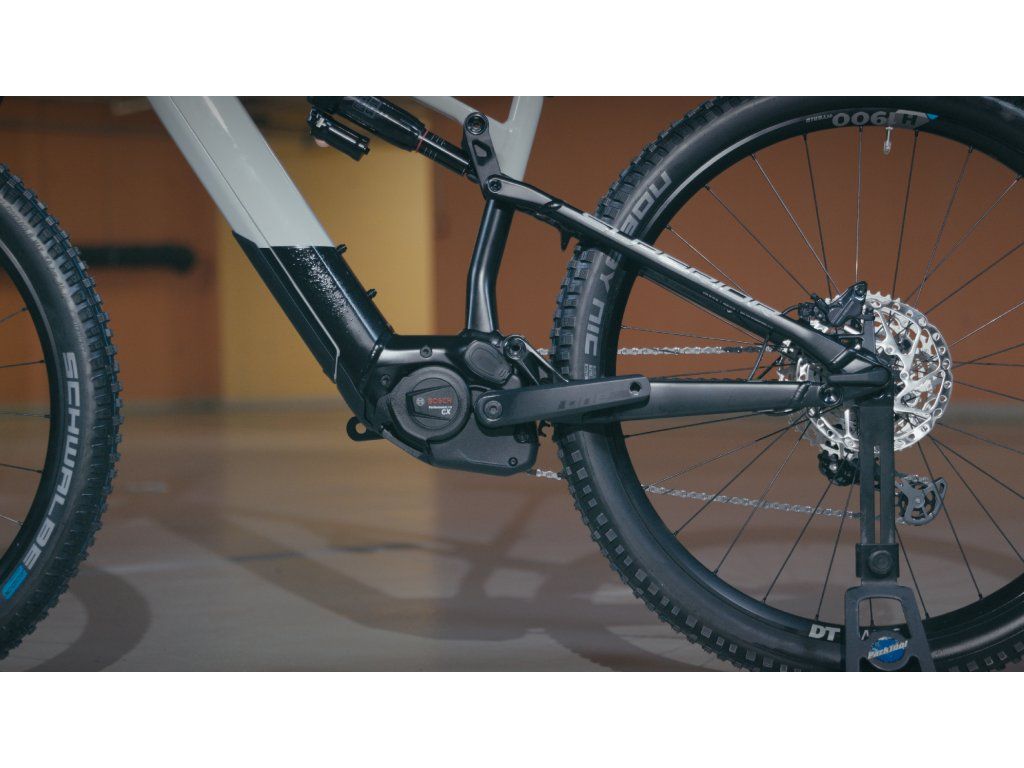

MOTOR: E- BIKE PARTS: BOSCH Performance Line CX, 85Nm
CHARGER: E- BIKE PARTS: BOSCH 4A
BATTERY: E- BIKE PARTS: BOSCH PowerTube, 750Wh
DISPLAY: E- BIKE PARTS: BOSCH Mini Remote

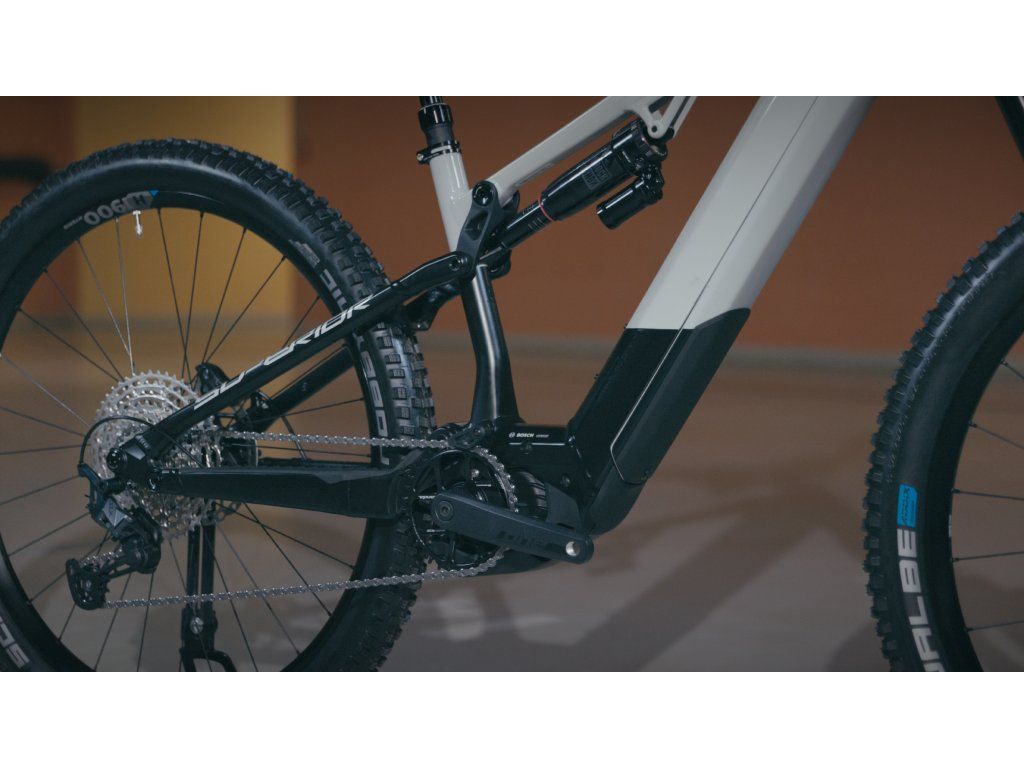

FRAME: FRAMESET: SUE03-CXBES3, Alu X6 Ultralite MTB Trail, Advanced e-MTB Geometry, Travel 160/140 mm, BOSCH CX Performance 5G ready, Integrated battery up to 750Wh, 3D alloy one pice link, Alloy swingarm, Boost 12x148 mm, Inner cable routing, Dropped seat

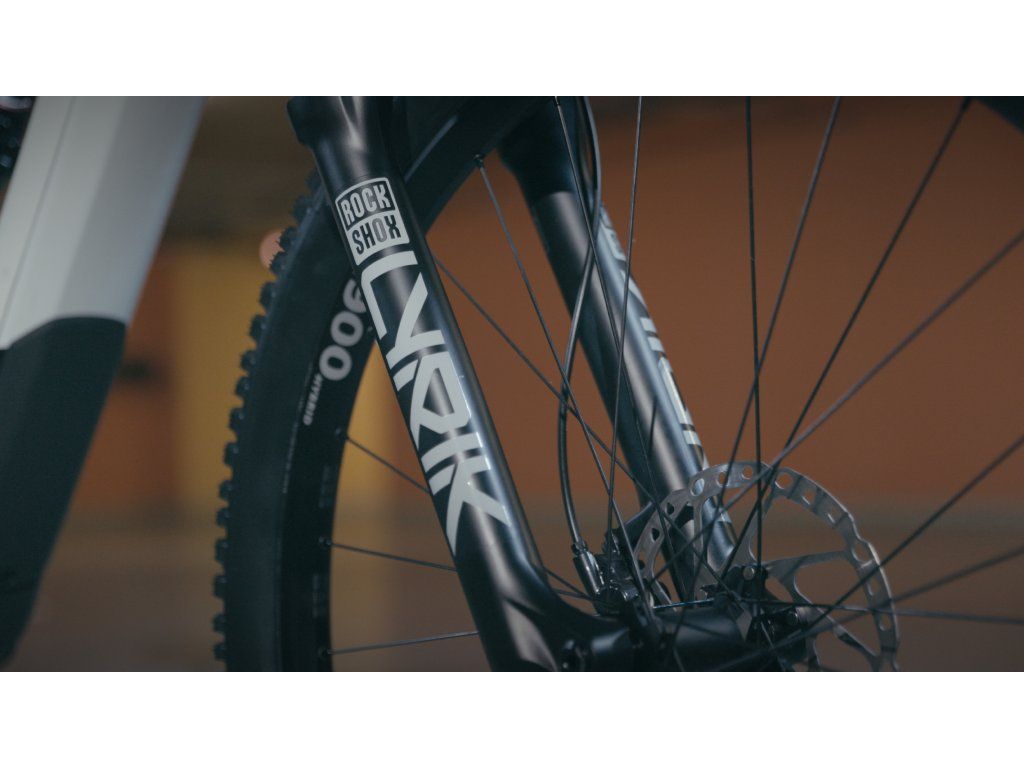

SUSPENSION FORK: FRAMESET: RockShox Lyrik Select RC, Tapered, DebonAir, 15x110mm axle, 160mm travel

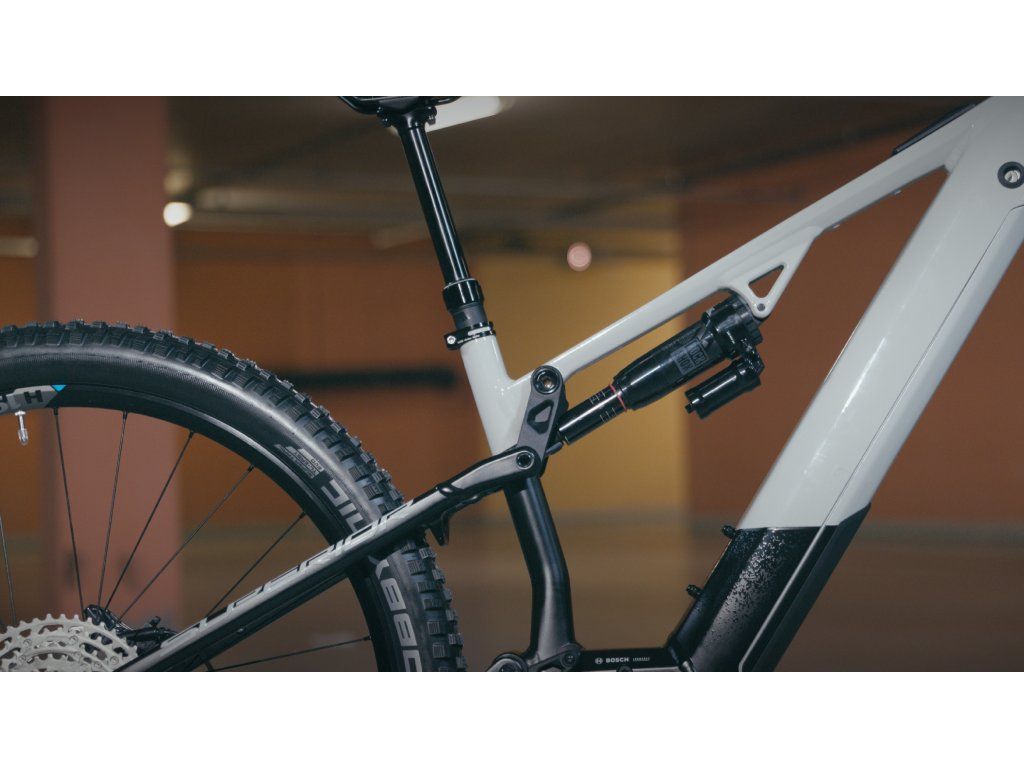

REAR SHOCK: FRAMESET: RockShox Super Deluxe Select R, size 230x65mm
HEADSET: FRAMESET: ACROS AZX-1051S, ICR, ZS56/28.6 - ZS56/40, BlockLock 120°, Stainless Bearings
REAR AXLE: FRAMESET: SB02, TA12x171.5, M12xP1.0x14.5mm, Black

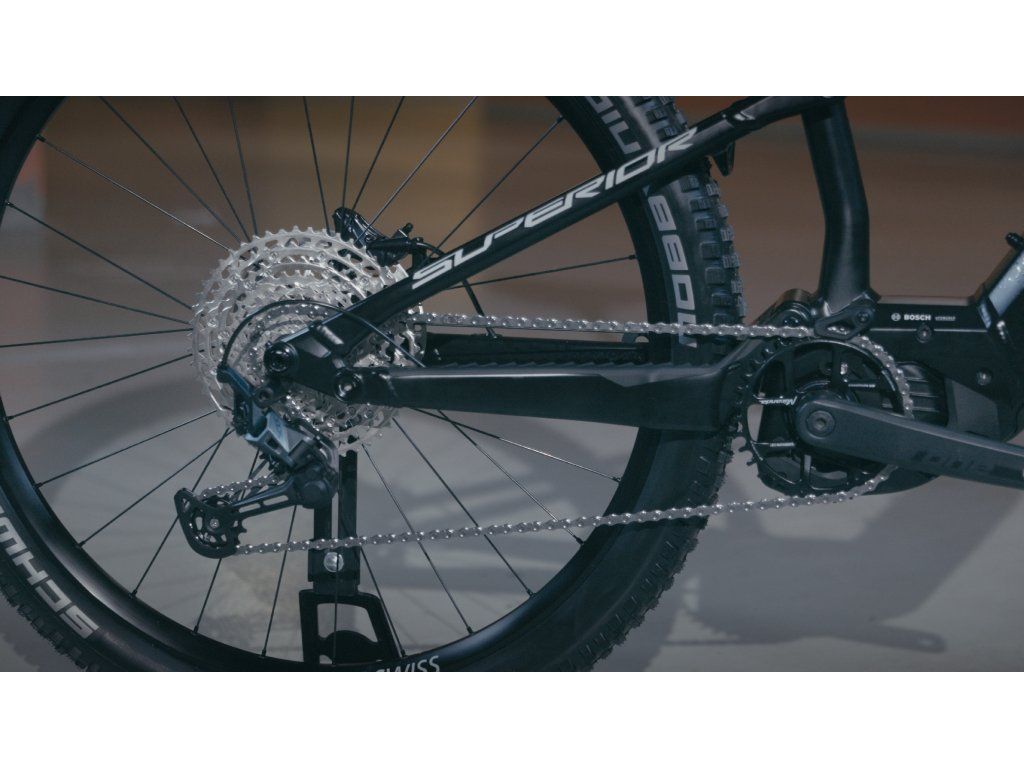

SHIFTERS RIGHT: DRIVETRAIN: SHIMANO DEORE SL-M6100-IR, RAPIDFIRE Plus, 12speed
REAR DERAILLEUR: DRIVETRAIN: SHIMANO SLX RD-M7100, Shadow Plus Design
CRANKSET: DRIVETRAIN: ONE Race, Alloy
CHAINRING: DRIVETRAIN: ONE Race, 34T
CASSETTE: DRIVETRAIN: SHIMANO DEORE CS-M6100, 12-speed, 10-51T
CHAIN: DRIVETRAIN: SHIMANO DEORE CN-M6100
BRAKE FRONT: BRAKING SYSTEM: SHIMANO M6120, 4 piston, hydraulic disc brake
ROTOR FRONT: BRAKING SYSTEM: SHIMANO SM-RT64, 180mm
BRAKE REAR: BRAKING SYSTEM: SHIMANO M6120, 4 piston, hydraulic disc brake
ROTOR REAR: BRAKING SYSTEM: SHIMANO SM-RT64, 180mm
WHEELSET FRONT: WHEELS: DT Swiss H 1900 SPLINE®, CL, 15x110mm, Tubeless Ready
WHEELSET REAR: WHEELS: DT Swiss H 1900 SPLINE®, CL, 12x148mm, SH12, Tubeless Ready
TIRE FRONT: WHEELS: Schwalbe Nobby Nic Evo, SuperTrail, TL-Easy, 29x2.60", ADDIX SpeedGrip
TIRE REAR: WHEELS: Schwalbe Nobby Nic Evo, SuperTrail, TL-Easy, 29x2.60", ADDIX SpeedGrip
STEM: COCKPIT: ONE ICR, Alloy, 35mm, 0°
HANDLEBAR: COCKPIT: ONE Alloy, 12mm rise, 35mm
GRIPS LEFT: COCKPIT: ONE Race, Lock-On
GRIPS RIGHT: COCKPIT: ONE Race, Lock-On
SADDLE: PARTS: Fizi:k Aidon X5, Alloy
SEATPOST LEVER: PARTS: SHIMANO SL-MT500-L, Seat post lever
SEATPOST: PARTS: ONE Sport Dropper Post, Alloy, 30.9mm
SEATPOST CLAMP: PARTS: ONE CC-904A, 34.9mm, Full CNC mahined, Black

Velikost: M
Barva: Gloss Chrome / Black
Velikost: XL
Barva: Gloss Chrome / Black
